OH6425 - according to EN 50131-6

‌‌

Certification according to EN 50131-6

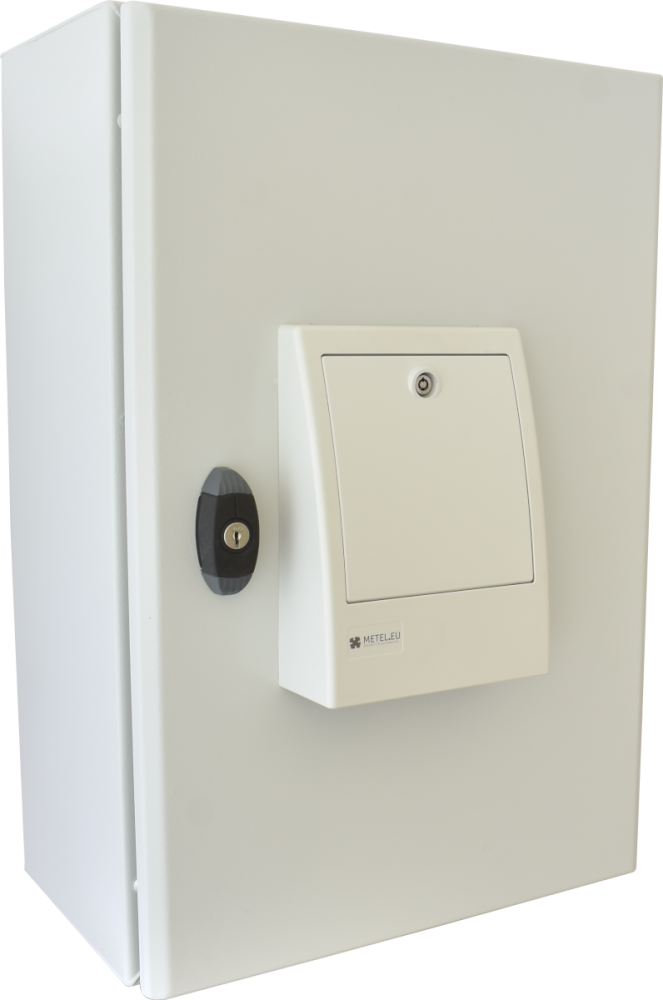

Steel switchboards with IP66 protection
Suitable for outdoor switch installation
Dimensions: 600x400x250 mm
Free space for backup batteries
Optional accessories
- brackets for wall mounting
- brackets for installation on a pole
- optical cassette or box

The OH6425 Security series outdoor steel switchboards are designed for outdoor installation of 2G and 20G series industrial switches. Models are available with a backup power supply and a shelf for battery installation. A Wiring Diagram and Unit Test Report are included.

Models

OH6425-C10.A12.R.PB8.SE-SEC

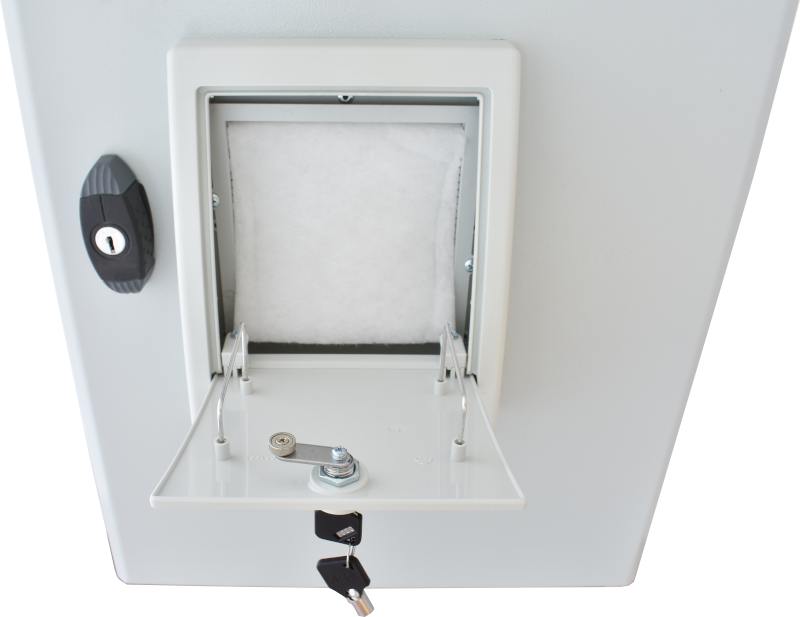

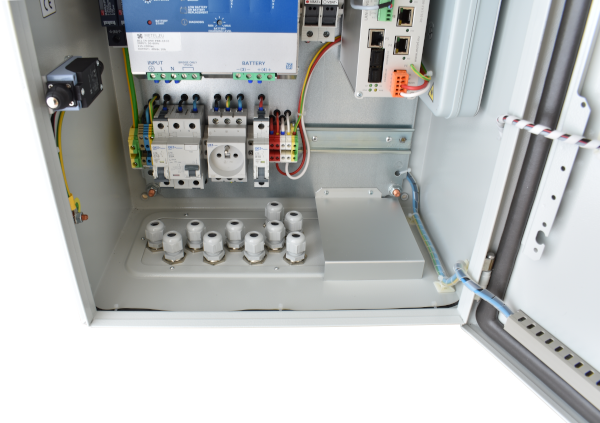

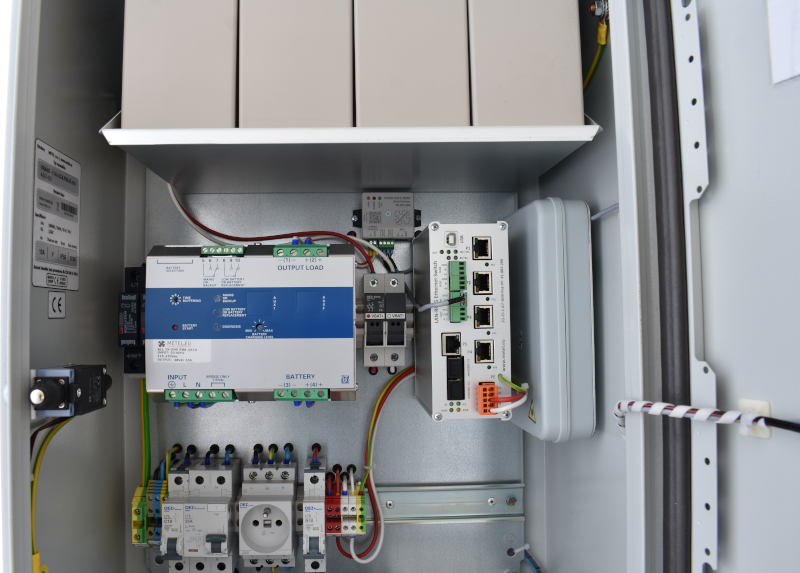

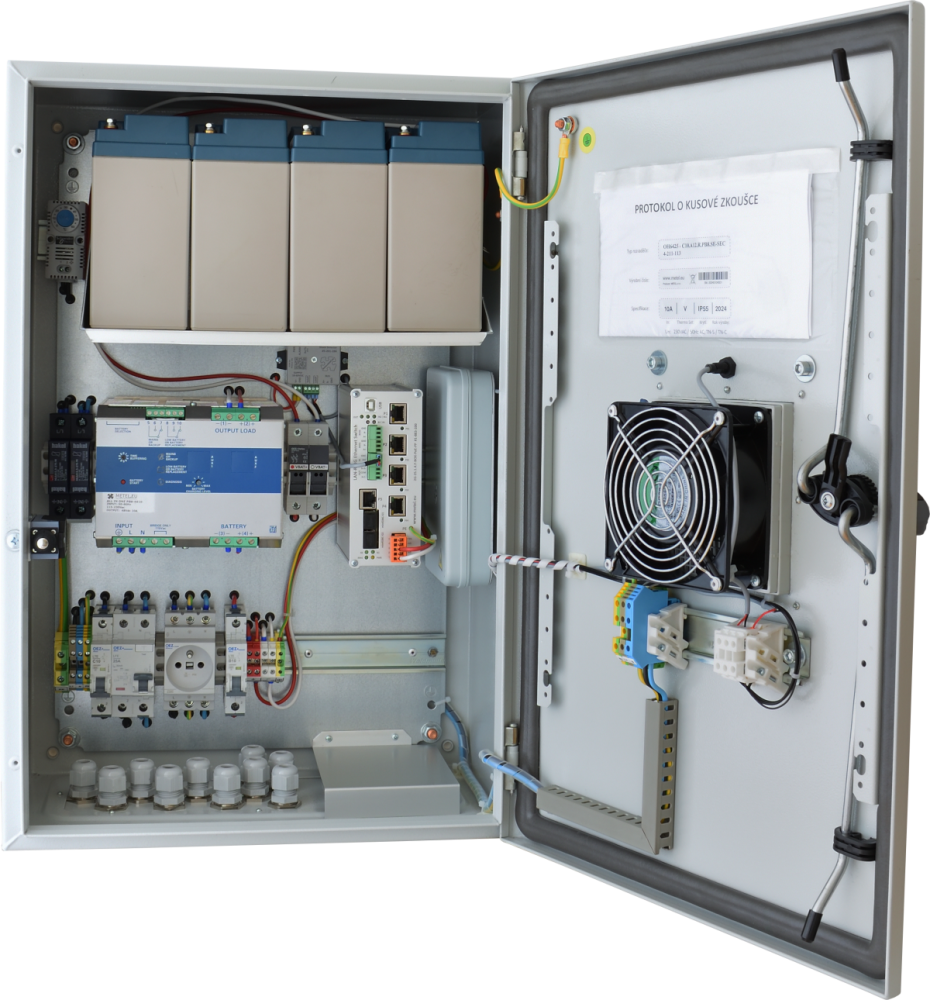

Outdoor steel switchboard certified according to EN 50131-6 with space for backup batteries. The switchboard is optimized especially for outdoor installations of industrial switches, PLCs and METEL IO modules. The switchboard is equipped with the following components. 230VAC socket type E (CZ), backup power supply 48VDC/480W, surge protection 1st + 2nd stage, circuit breaker 10A, current protector, active ventilation controlled by thermostat, 3-axis shock detector, dimensions: 600x400x250 mm

Order code: 4-211-113

Availability: Full-scale production

OH6425-C10.A12.R.PB8.SF-SEC

Outdoor steel switchboard certified according to EN 50131-6 with space for backup batteries. The switchboard is optimized especially for outdoor installations of industrial switches, PLCs and METEL IO modules. The switchboard is equipped with the following components. 230VAC socket type F (DE), backup power supply 48VDC/480W, surge protection 1st + 2nd stage, circuit breaker 10A, current protector, active ventilation controlled by thermostat, 3-axis shock detector, dimensions: 600x400x250 mm

Order code: 4-211-123

Availability: Full-scale production

Specifications

OH6425 - Security

Short catalog Sheet (PDF) EU declaration of conformity (PDF)

Technical parameters

MECHANICS
Dimensions - h / w / d	600 x 400 x 250 mm

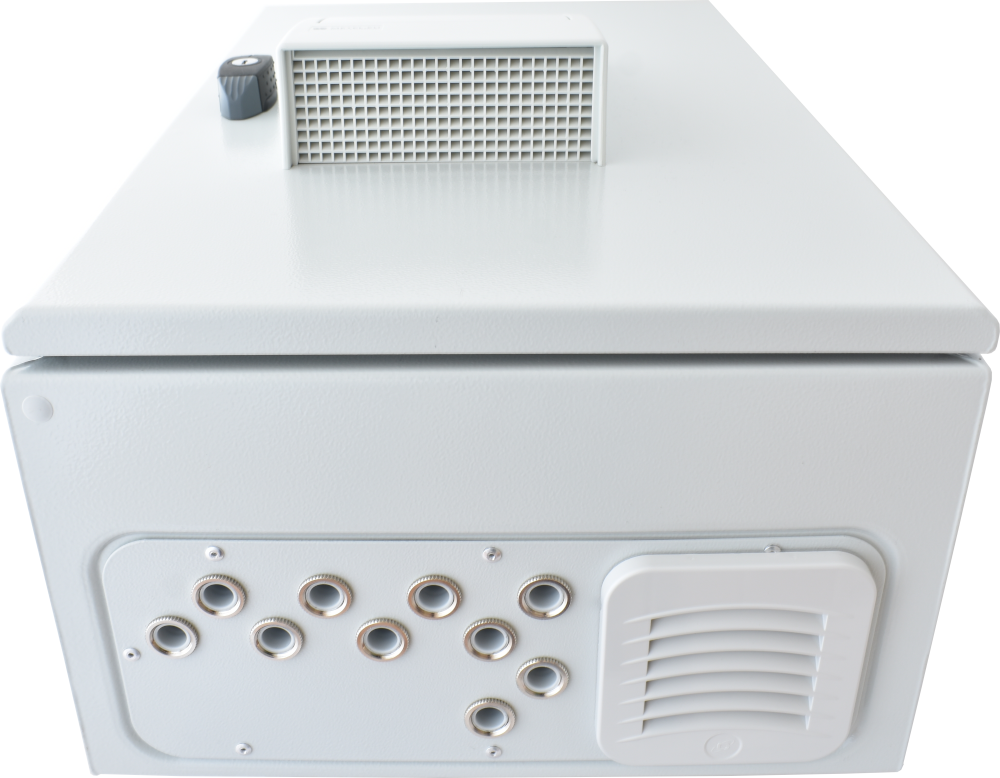

Pins	10 (PG11)
Material and finish	Galvanised steel with epoxy polyester (grey RAL 7035)
Weight	Max. 20 kg (without batteries)
Tamper	Contact NC
Mechanical protection	IK10

JISTIČ
Rated working voltage	230 VAC
Rated current	10 A
Tripping characteristic	C
Rated short-circuit capability	6 kA

SURGE PROTECTION
Type	T1, T2, T3
Rated AC operating voltage	230 VAC
Voltage protection level at the In input	1,25 kV
Pulse discharge current for Class I test (10/350)	12.5 kA
